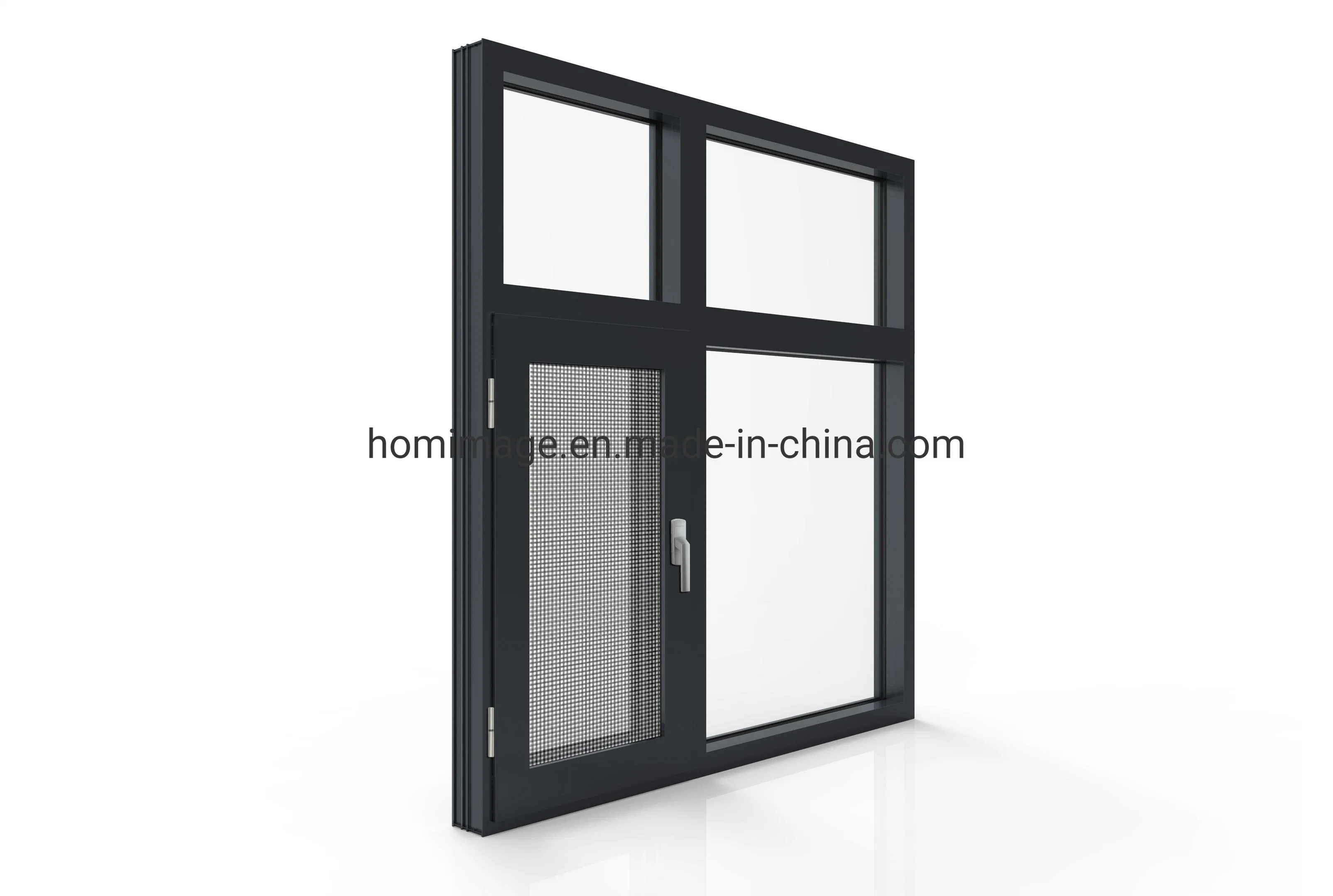

Hw49/100 Aluminum Casement Window/Aluminium Double Glass Window with Steel Fly Screen

1 / 5

Hw49/100 Aluminum Casement Window/Aluminium Double Glass Window with Steel Fly Screen

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

HW49/100

Frame Material

Aluminum Alloy

Screen Material

Steel

Style

Modern

Opening Pattern

Horizontal

Surface Finishing

Finished

Watertight

500PA

Windload Resistance

4.1kpa

Capacity

100000sqm/Year

Product Description

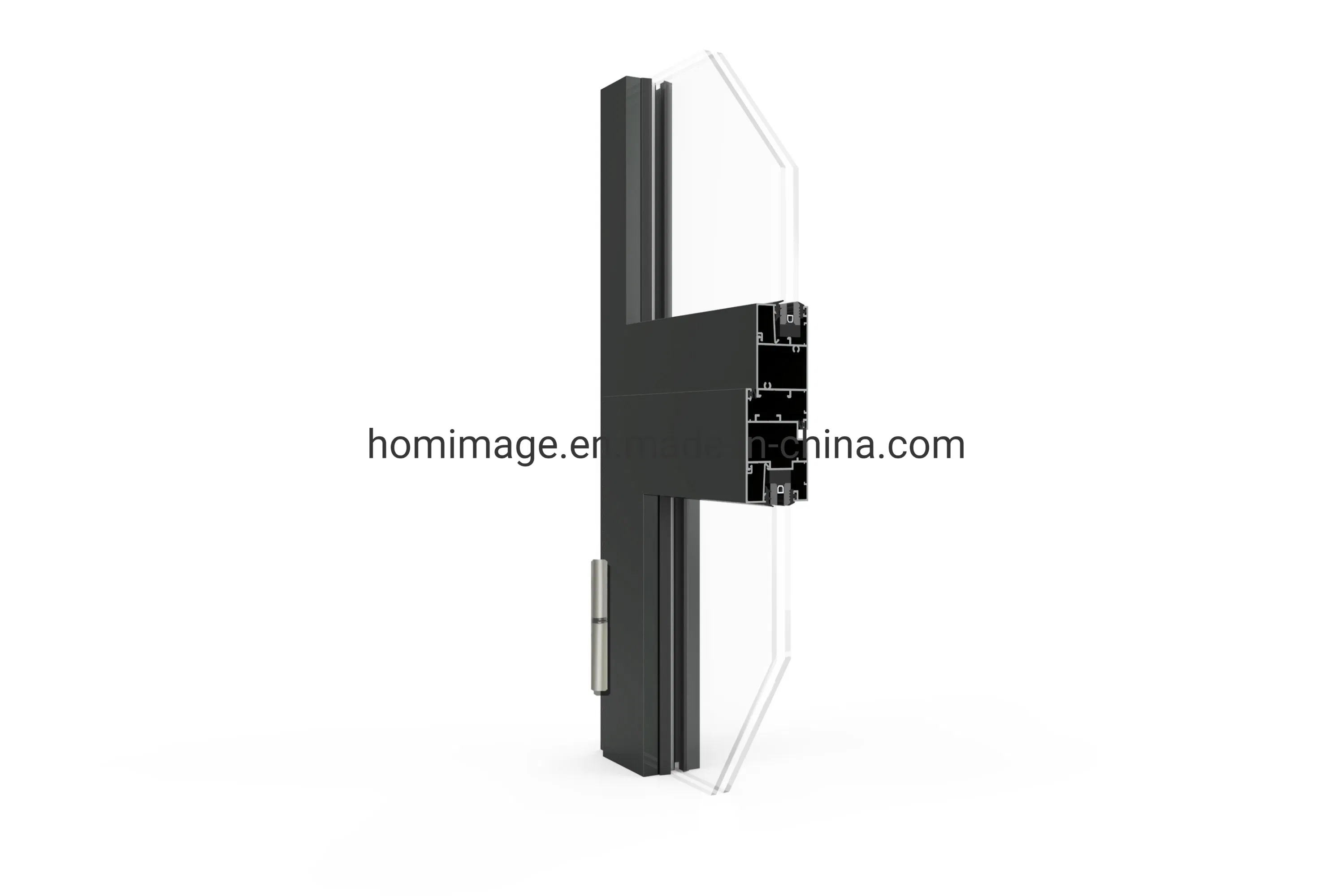

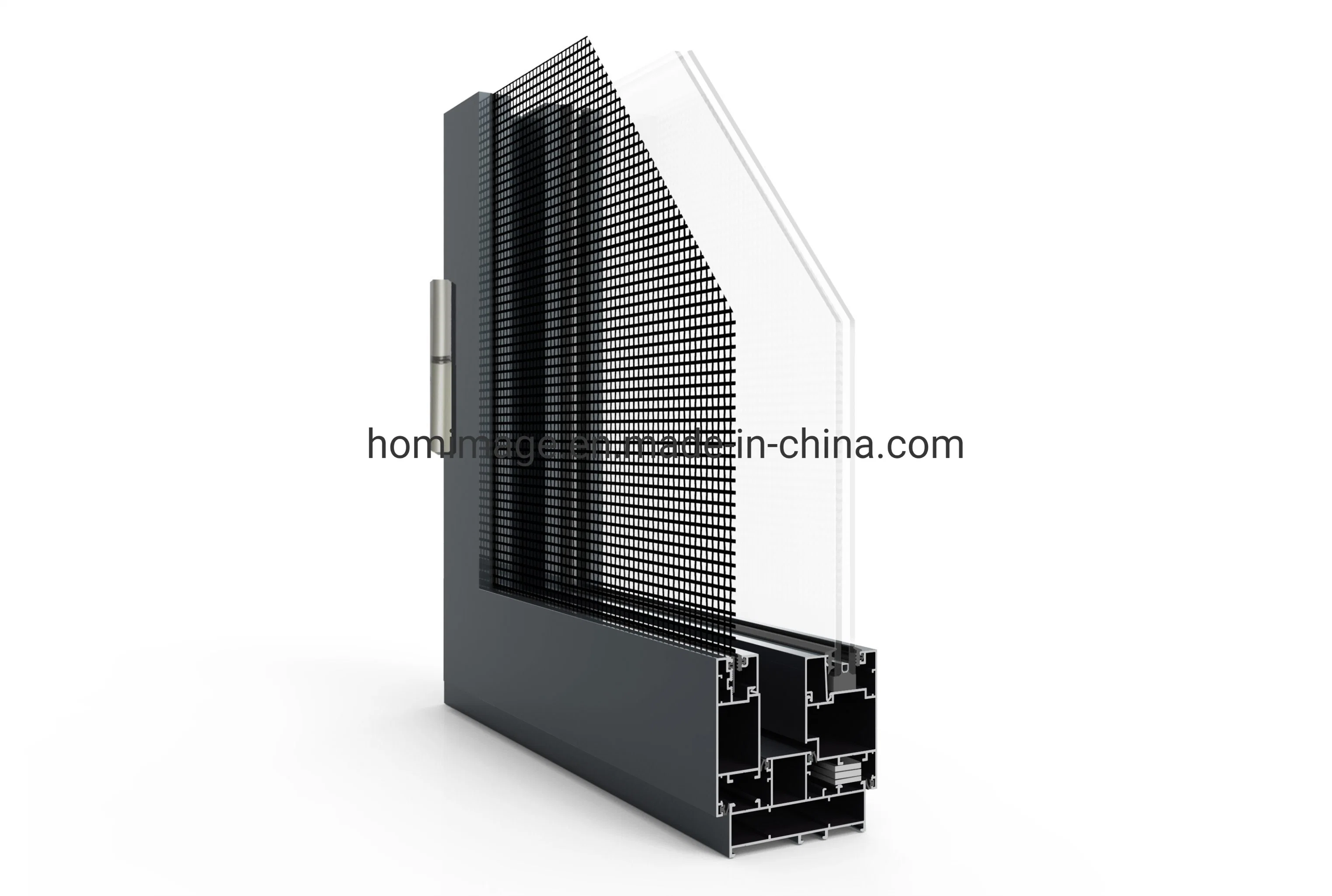

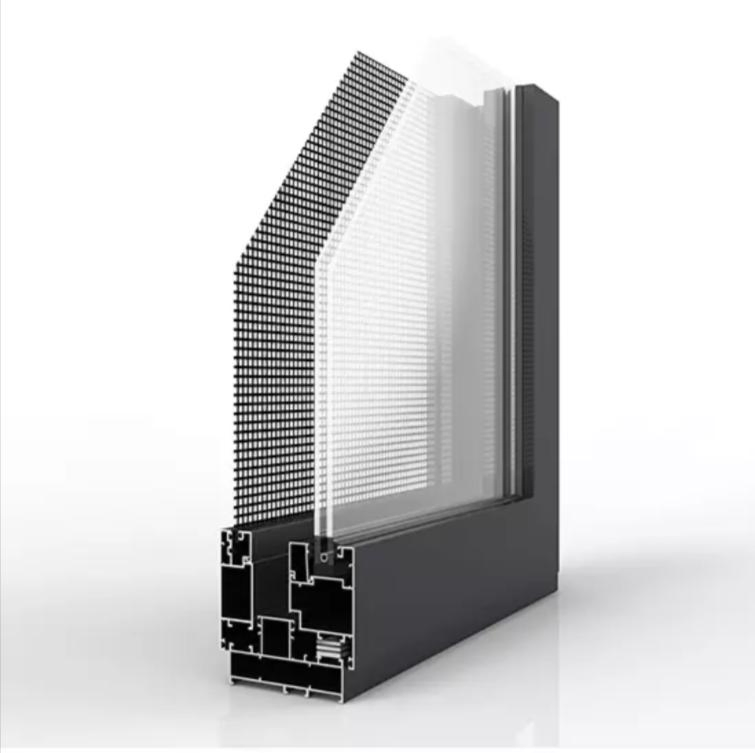

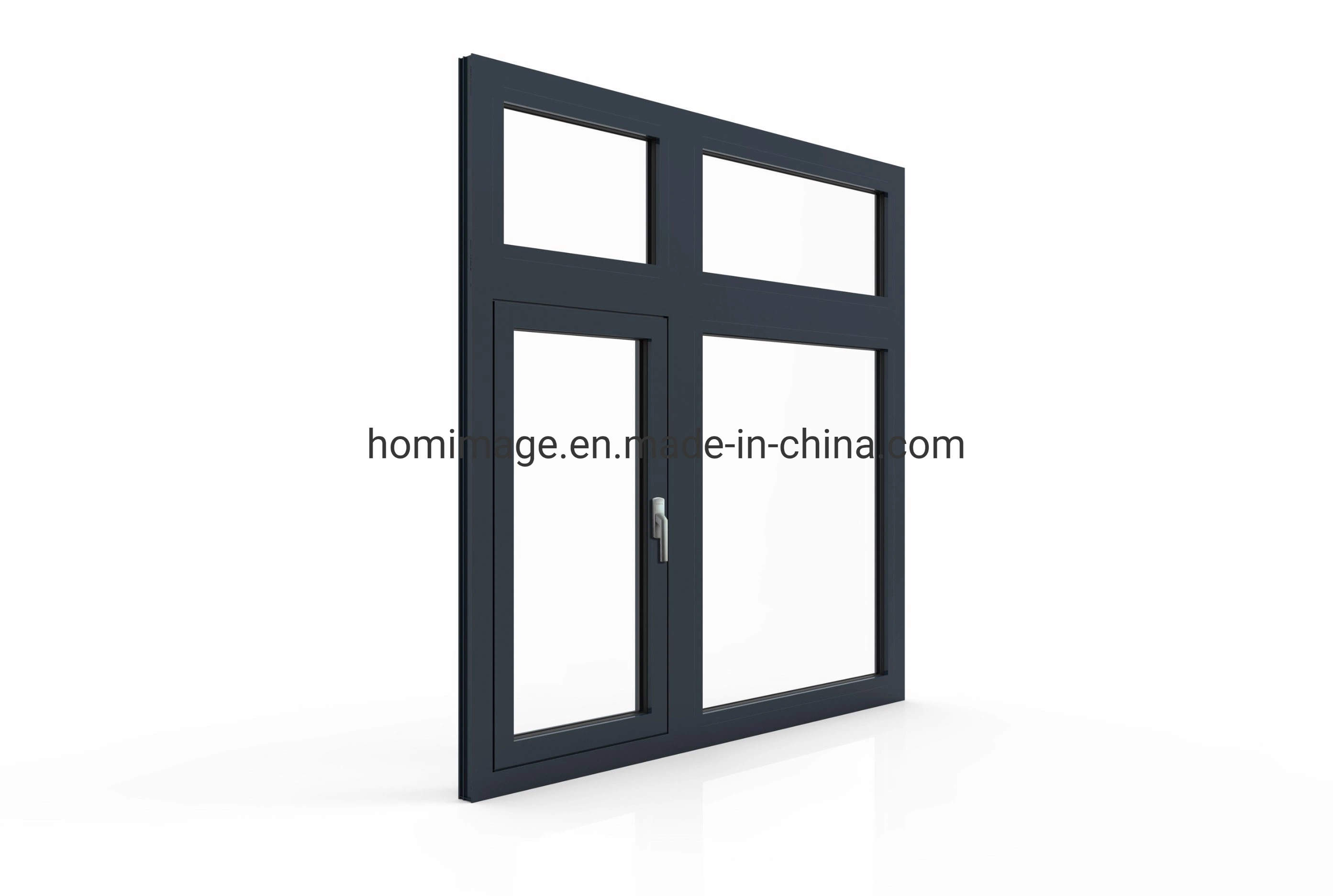

HW49/HW100 series Casement Window

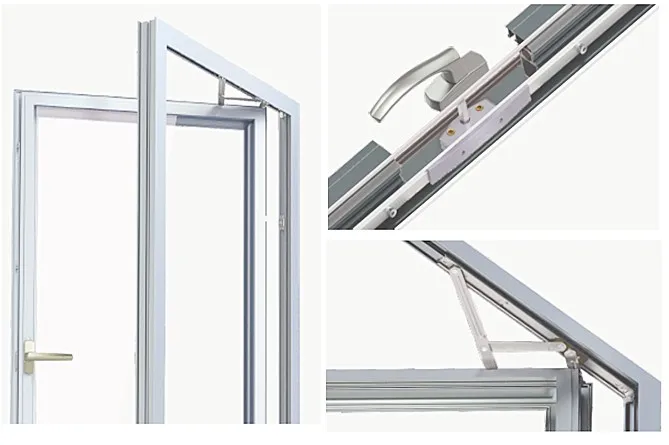

The HW49/HW100 series is an versatile casement system designed for elegant architectural requirements, offering multiple opening configurations including outside, inside, awning, and tilt-turn options.

✔ Security: Inward side glass beads solve security concerns for low-rise buildings and installation safety for high-rise structures.

✔ Water Tightness: Advanced drainage design ensures superior performance against water ingress.

✔ Versatility: Two distinct frame thicknesses allow for cost-effective solutions tailored to specific project needs.

Performance Data

Heat Preservation [W(m2.k)]	Sound Insulation (DB)	Watertight (Pa)	Airtight Performance	Wind Load (KPA)
2.3-2.8 (Level 5/6)	35DB (Level 4)	500PA (Level 5)	Level 6	4.1KPA (Level 7)

Technical Parameters

Sash Size Limits	Visible Frame/Sash	Frame Depth	Glass Thickness
W: 300-800mm H: 300-1800mm Max Weight: 45kg	HCW49: 51/74mm HCW100: 49/74mm	HW49: 49mm HW100: 100mm	SGU: 4-10mm DGU: 14-35mm

Surface Finishes

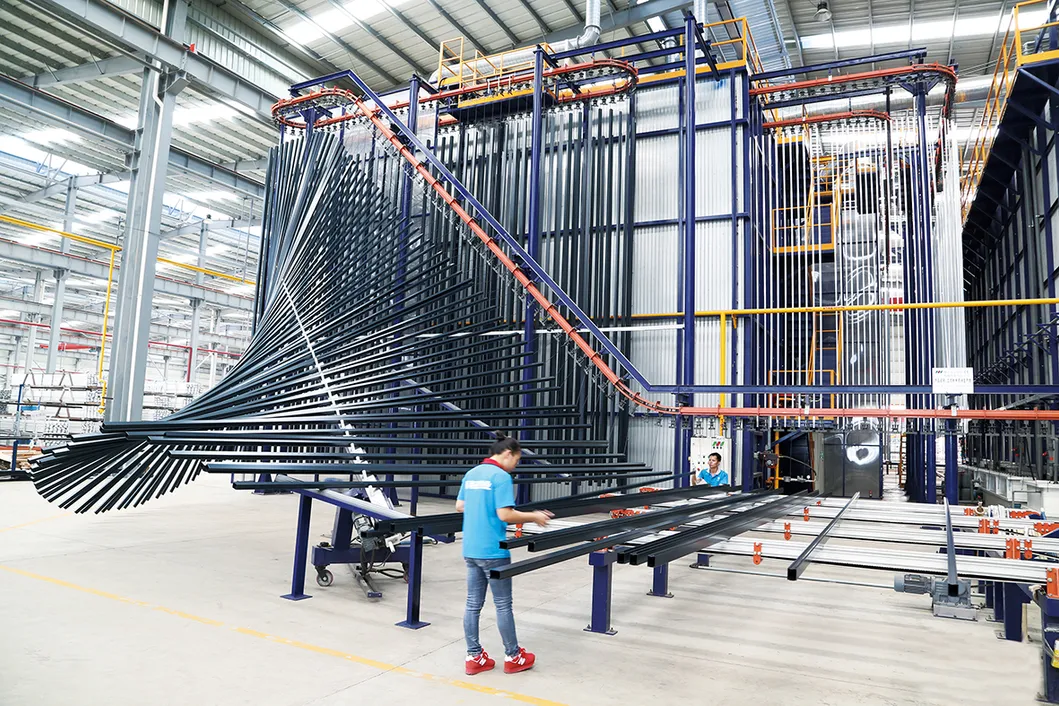

Available Options: Powder Coating, Anodized, and Wooden Grain Finishes.

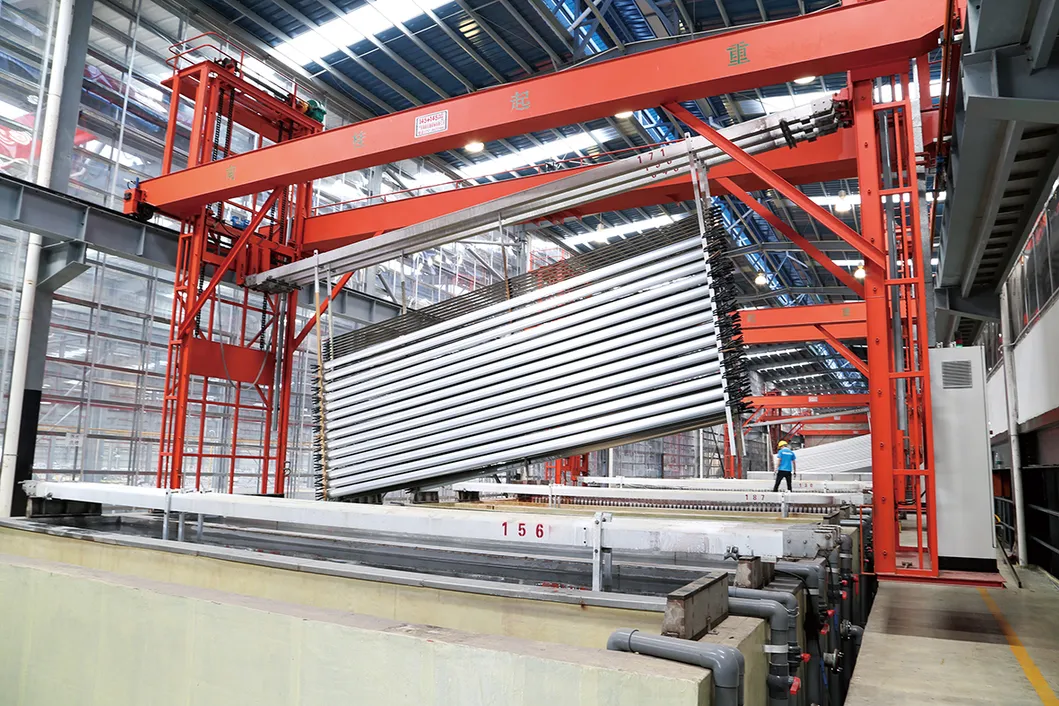

Manufacturing Capacity

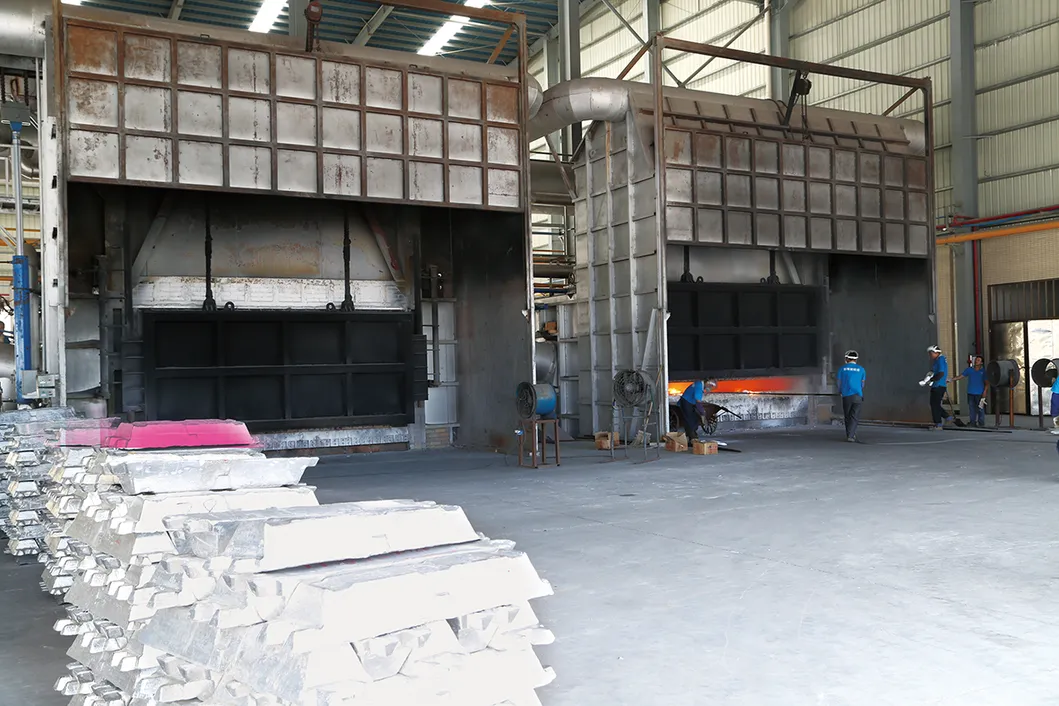

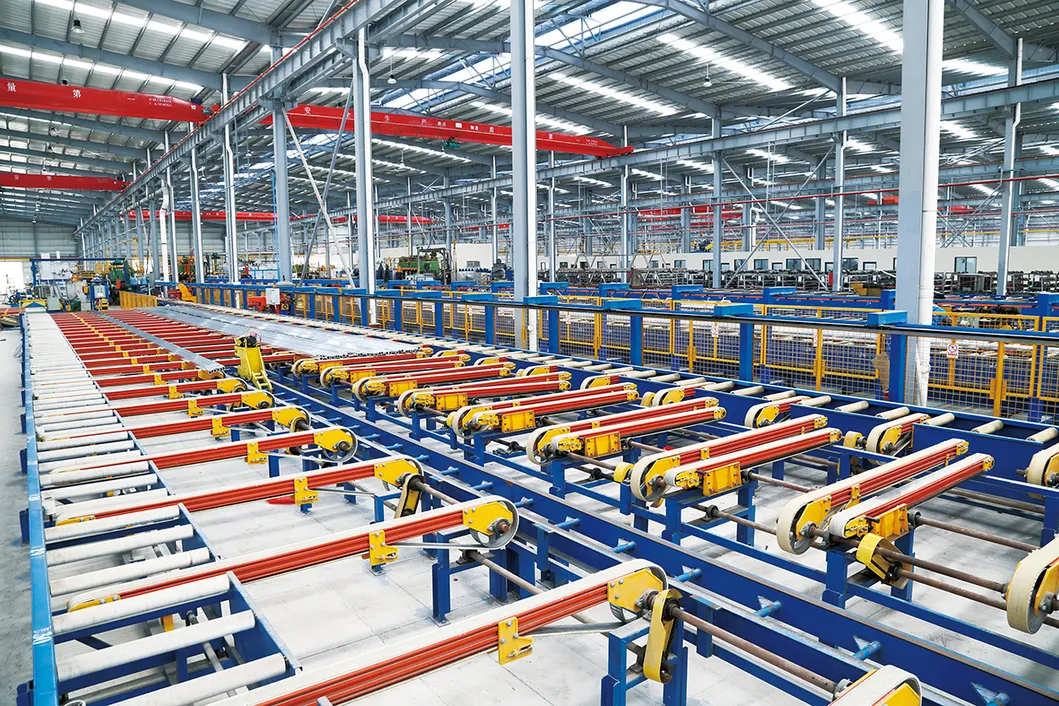

Aluminium Alloy	Extrusion Lines	Billet Casting	Annual Output
6063/6061-T4,5,6	14 Lines	2 Lines	100,000 Tons

Offerings & Services

⭐ Product Range

• Sliding & Casement Windows
• Entrance & Bi-fold Doors
• Unitized Curtain Walls
• Sun Rooms & Partitions
• Aluminium Formworks & Cladding

⭐ Professional Services

Customization: Specialized suggestions for complex architectural engineering needs.

Technical Support: Wind load calculations, façade optimization, and installation guidance.

System Design: Development of new window and door systems based on market requirements.

Frequently Asked Questions

What are the main opening ways for the HW49/HW100 series?

The system supports multiple opening configurations, including outside opening, inside opening, awning (top-hung), and tilt-turn functionality.

What is the wind load resistance of these windows?

The windows offer a wind load resistance of 4.1KPA, which reaches Level 7 performance standards.

What types of glass can be used with this system?

The system is compatible with Single Glazed Units (SGU) from 4-10mm and Double Glazed Units (DGU) from 14-35mm, including clear, frosted, reflective, and Low-E options.

What is the typical lead time for production?

Generally, the production delivery time is approximately 15-20 workdays after the receipt of payment.

Can the surface finish be customized?

Yes, we provide several surface finishing options including Powder Coating, Anodized, Electrophoresis, PVDF, and Wooden finishes.

Do you provide samples for quality inspection?

New die samples are provided for approval and inspection to ensure they meet your project specifications before mass production.
