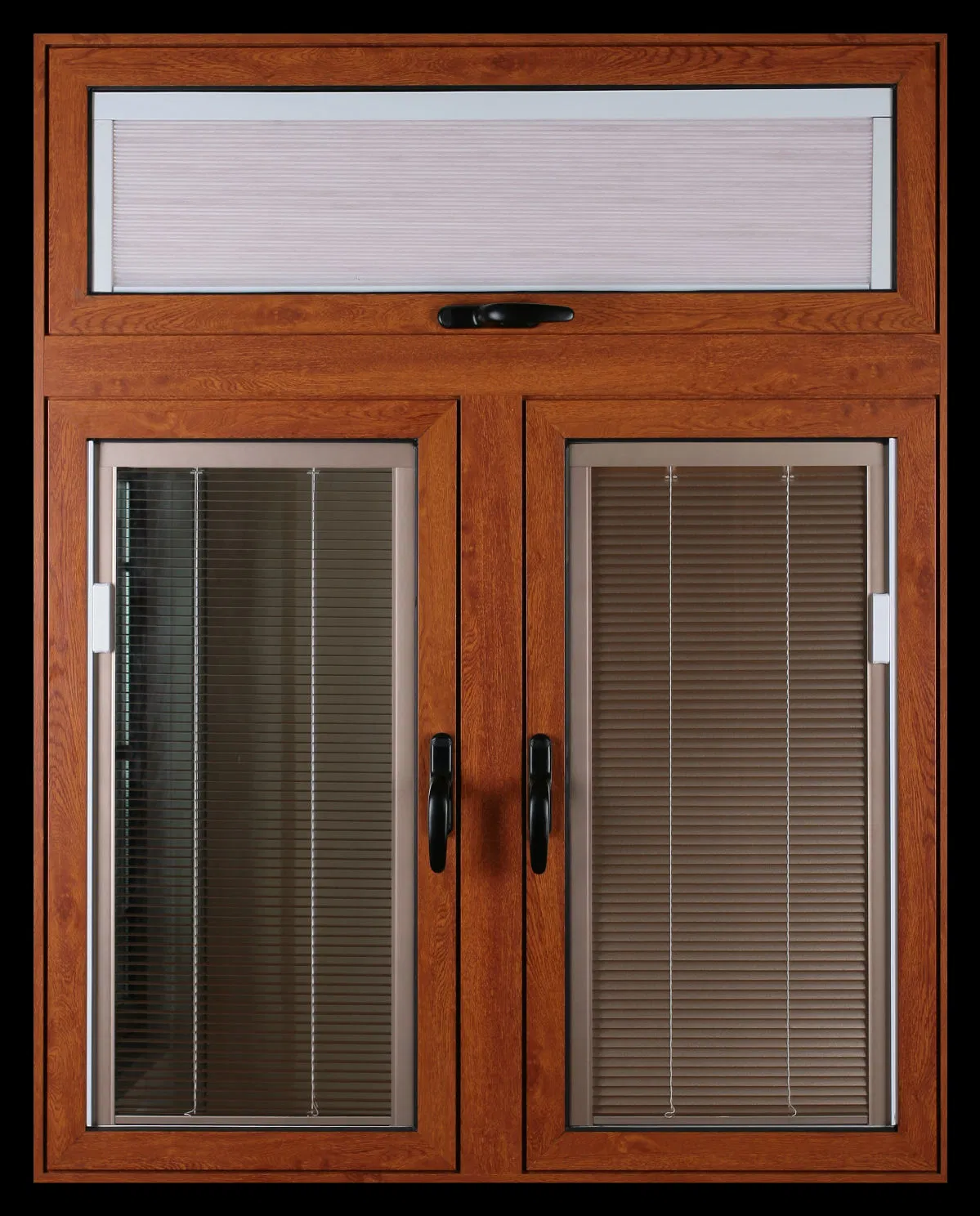

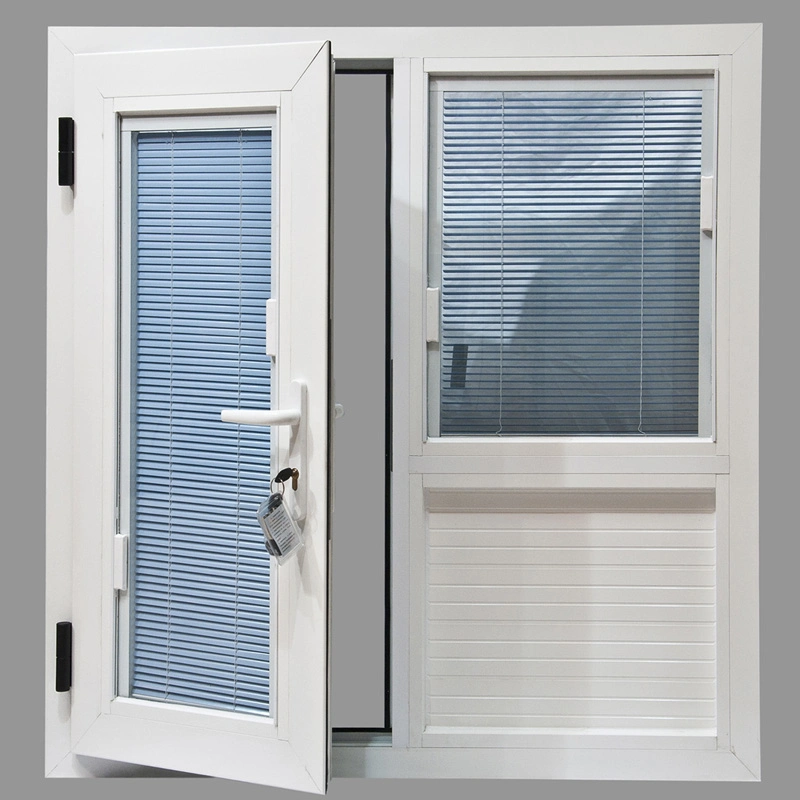

Aluminium Casement Window with Manual Magnetic Shutter

Basic Information

Model NO.

HD49

Frame Material

Aluminum Alloy

Screen Material

Steel

Style

Modern

Opening Pattern

Horizontal

Function

Heat Insulation, Soundproof, Anti-Theft, Insect-proof

Glass

Clear/Frosted/Reflective/Low-E

Surface

Powder Coating/Anodized/PVDF

Windload Resistance

4.1kpa

Origin

China

Product Description

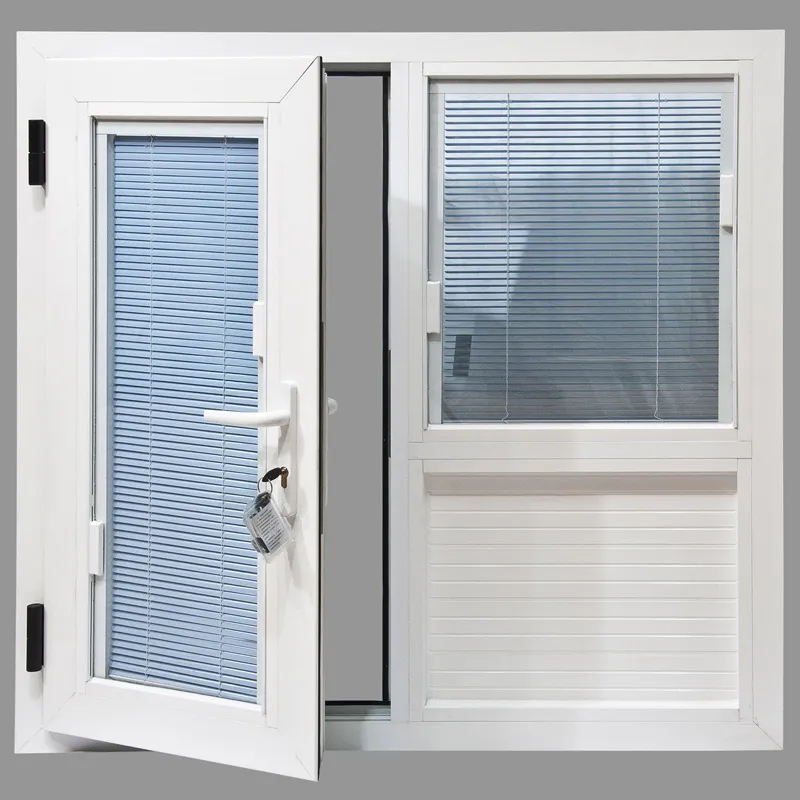

HW49/HW100 Series Casement Window

The HW49/HW100 series is an versatile outside-inside casement system designed for elegant architectural requirements. It supports multiple opening configurations including opening outside, inside, awning, and tilt-turn styles.

Enhanced Security: Inward side glass bead design solves security concerns for low-rise buildings and installation safety for high-rise structures.
Superior Drainage: Innovative drainage design ensures excellent water tightness.
Cost-Effective: Two different frame thicknesses are available to provide the most suitable solution based on project needs.

Performance Data
Heat Preservation	Sound Insulation	Watertight	Airtight	Wind Load
2.3-2.8 W/(m2.k) Level 5/6	35DB Level 4	500PA Level 5	Level 6	4.1KPA Level 7

Technical Parameters
Sash Range	Visible Width (HCW)	Aluminium Depth	Glass Options
Width: 300-800mm Height: 300-1800mm	Frame: 51mm Sash: 74mm	HW49: 49mm HW100: 100mm	SGU: 4-10mm DGU: 14-35mm
