Spencer Window
1 / 4

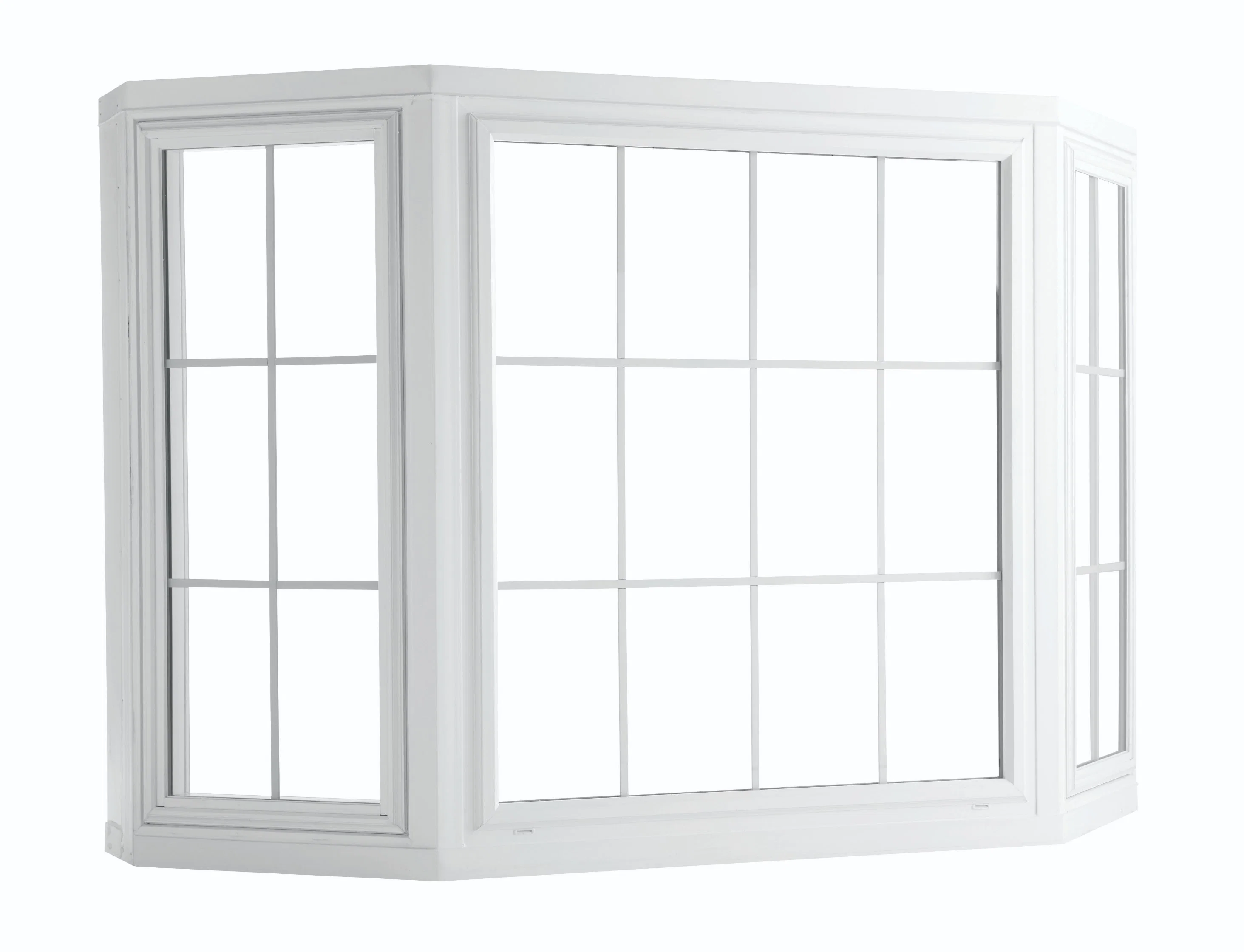

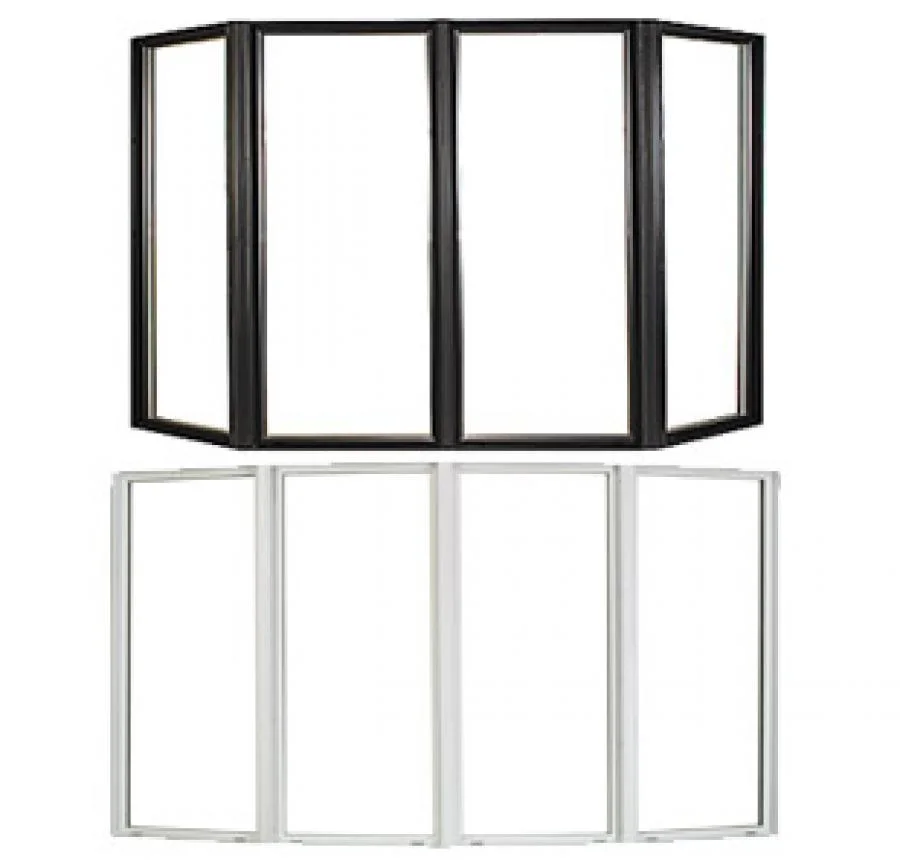

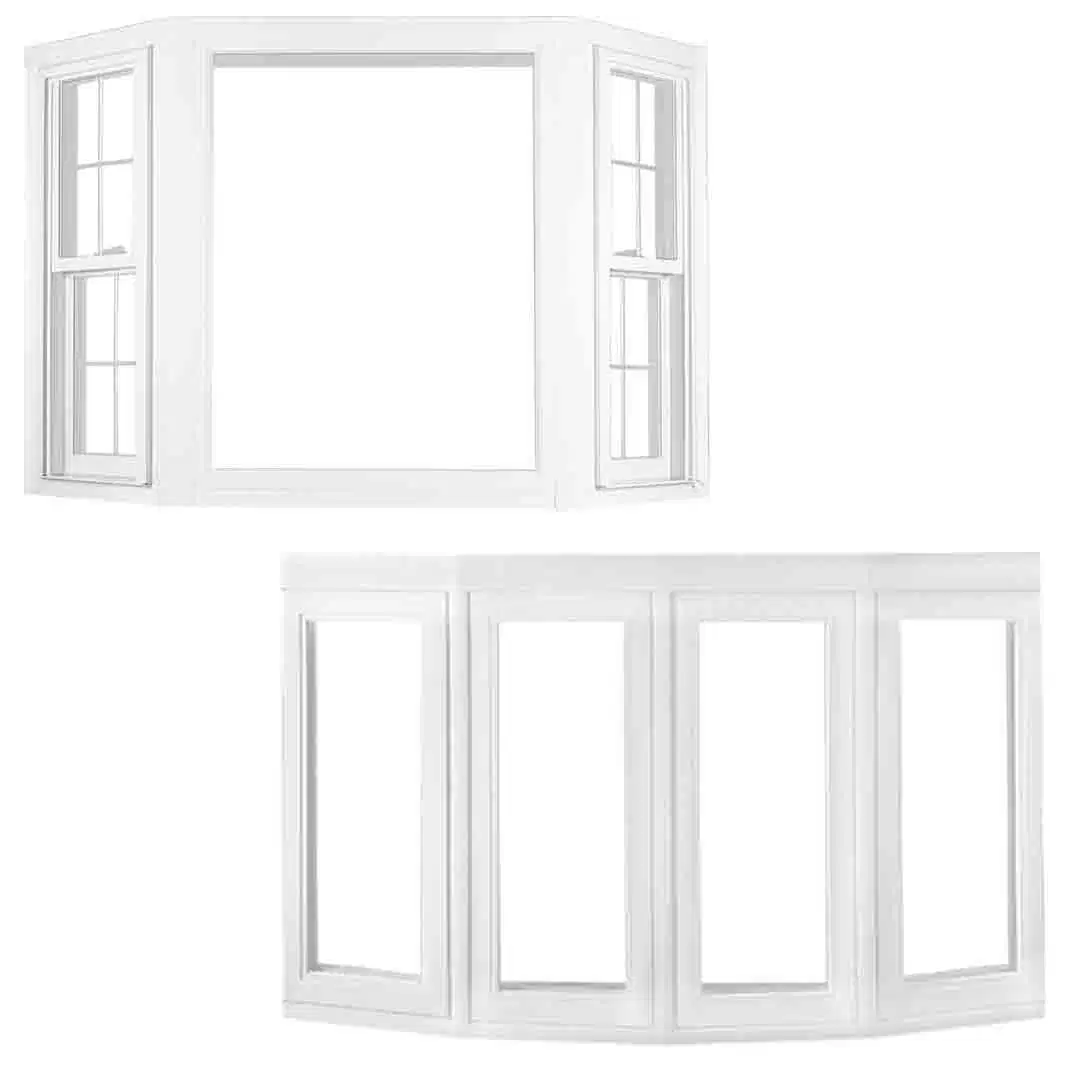

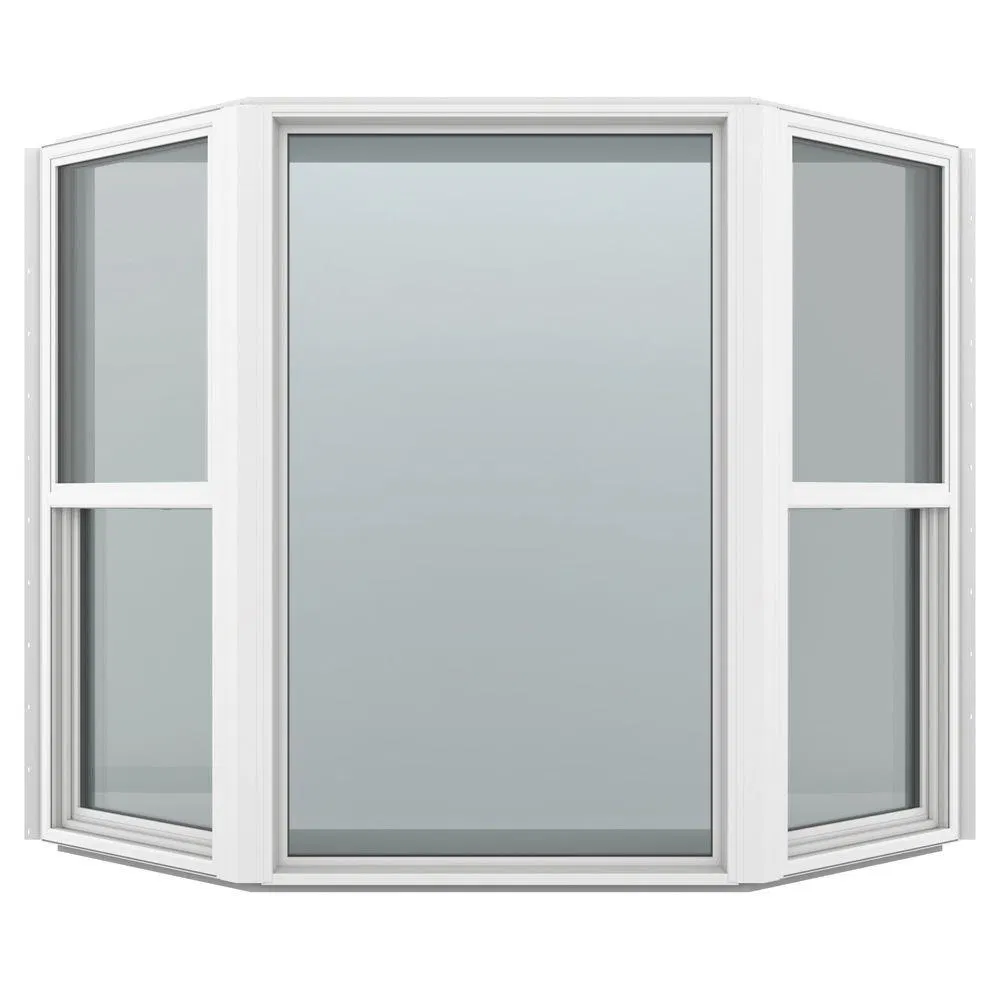

Bay and bow windows are created by combining three or more windows together so that they angle out beyond the house wall. They can be casement, double-hung or picture units depending on the need. By using more windows, bay and bow windows allow more light in and also give you extra space inside your room.
| Feature Details | |
|---|---|
| Aluminum Alloy | 6063-T5, thermal-break, non-thermal-break |
| Profile Thickness | 1.4mm - 2.0mm (Customized) |
| Surface Treatment | Powder coated, Electrophoresis, Anodizing, Wood grain |
| Glass Options | Single/Double/Triple Glazing, Low-E, Tempered, Laminated |
| Hardware | Chinese Top Brand or International Famous Brands |
| Sealing | Ternary ethylene propylene rubber sealing strip |
| Application | Residential houses, Condominiums, Hotels, Offices, Villas |
| Performance Type | Value | Standard Class |
|---|---|---|
| Wind Pressure | ≥5.0 kpa | GB/T7106-2008 / 9 Class |
| Air Permeability | ≤0.5 m3/(m.h) | GB/T7107-2008 / 8 Class |
| Water Permeability | ≥700 pa | GB/T7108-2008 / 6 Class |
| Noise Reduction | 45dB | GB/T8485-2008 / 6 Class |
| Thermal Insulation | ≤1.0w/(m2.k) | GB/T8484-2008 / 10 Class |
