Spencer Window
1 / 5
Pivot windows are perfect for minimalist-driven and modern architectures, especially in tight layouts, walkways, stairwells, lofts, and attics. They let in maximum ventilation without needing full clearance like casement windows, thanks to their half-turn rotation.

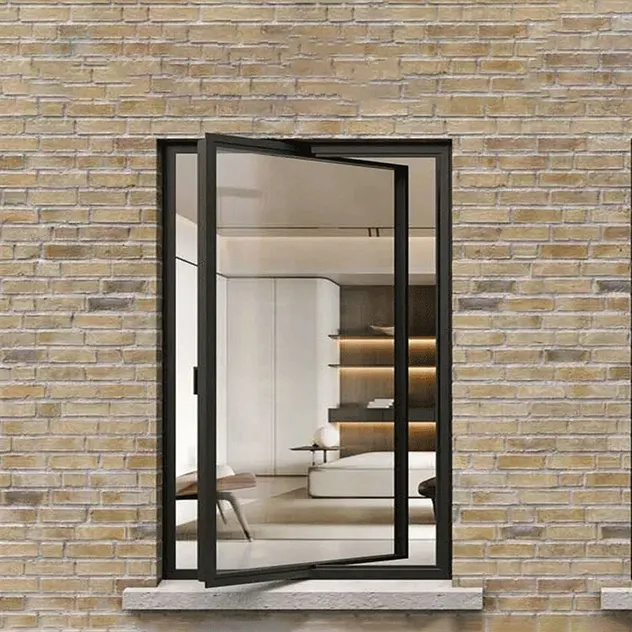

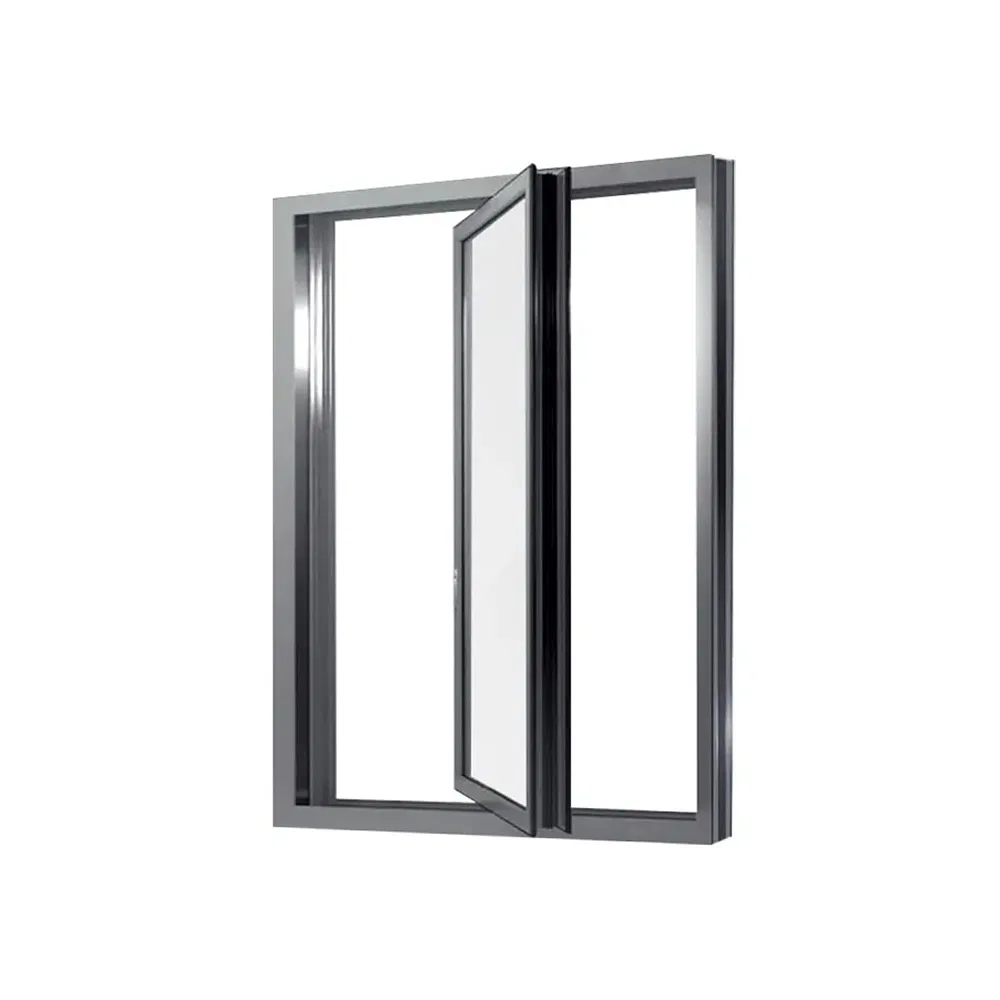

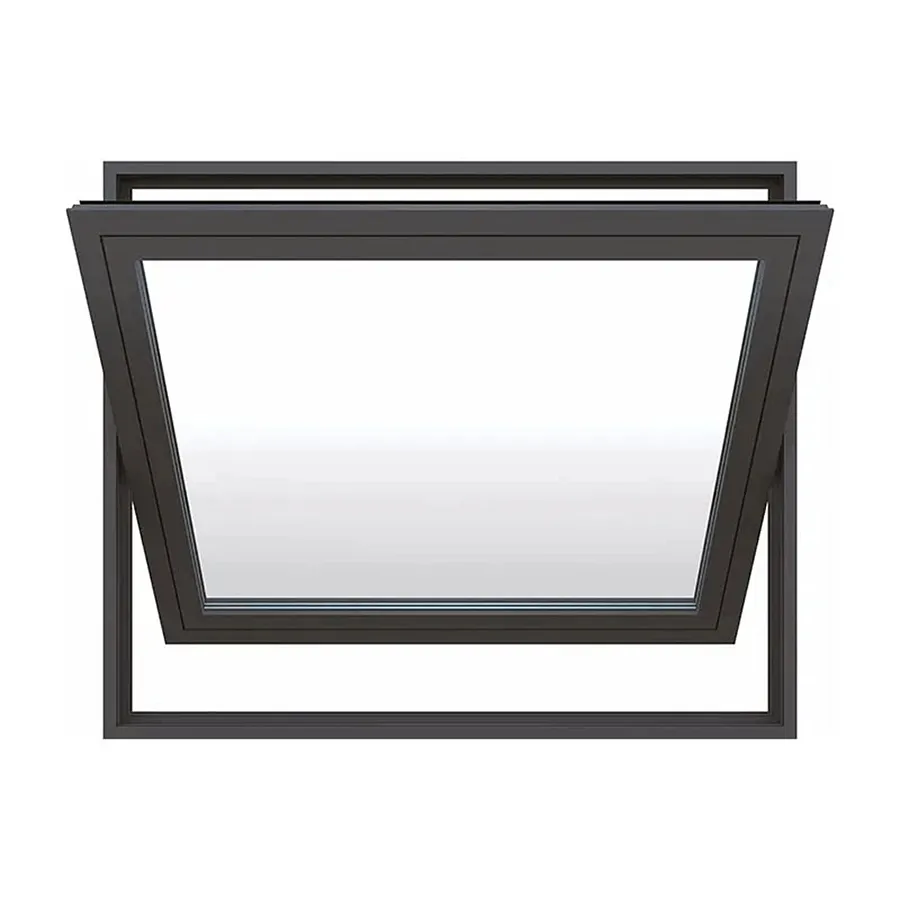

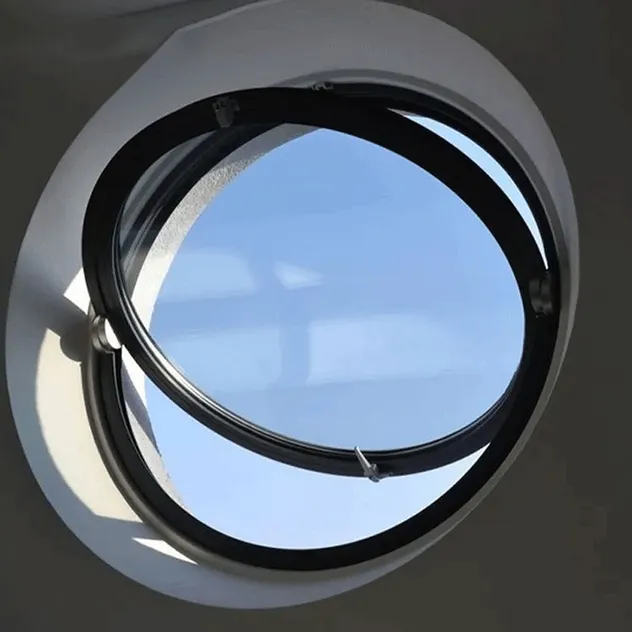

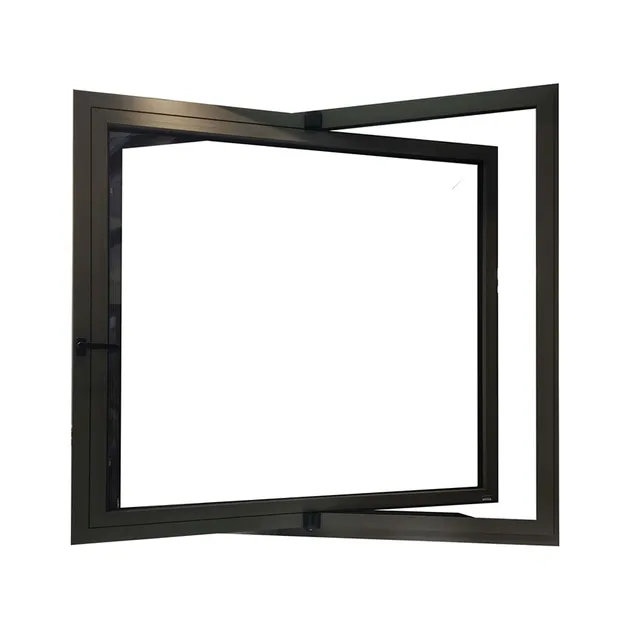

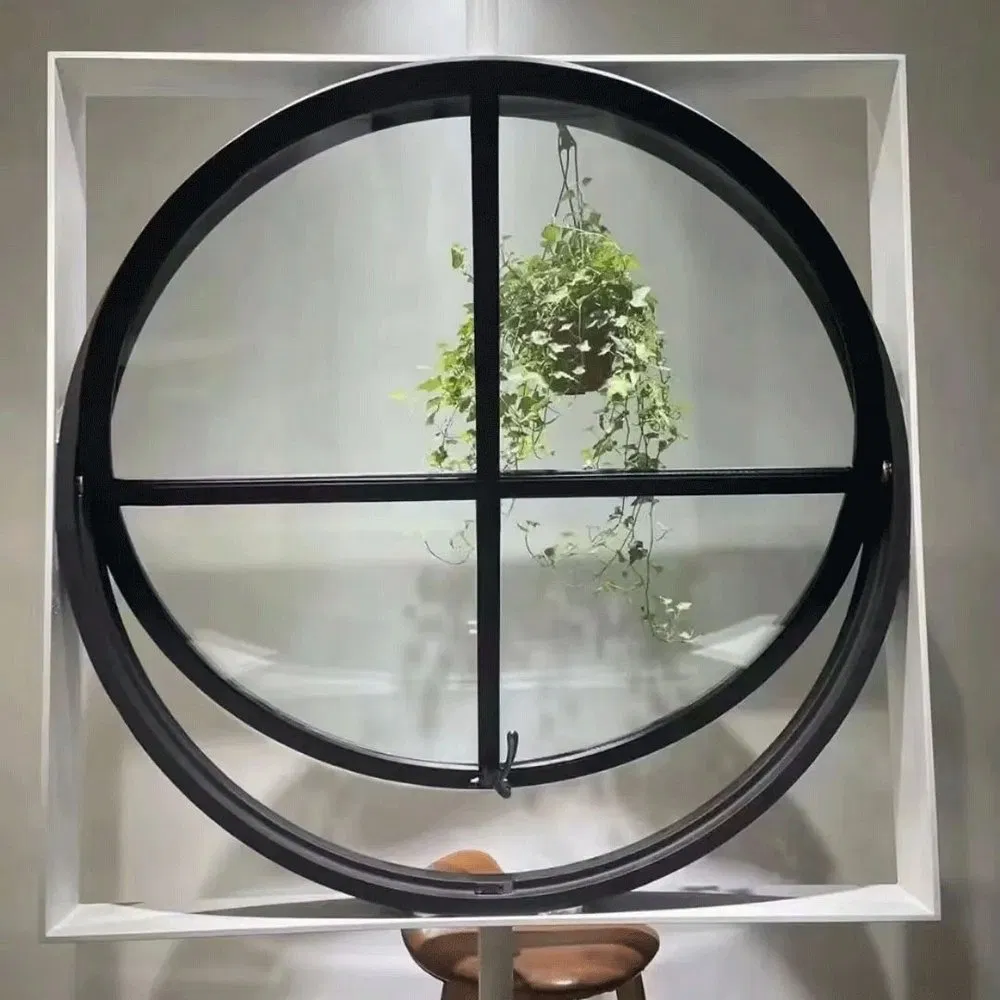

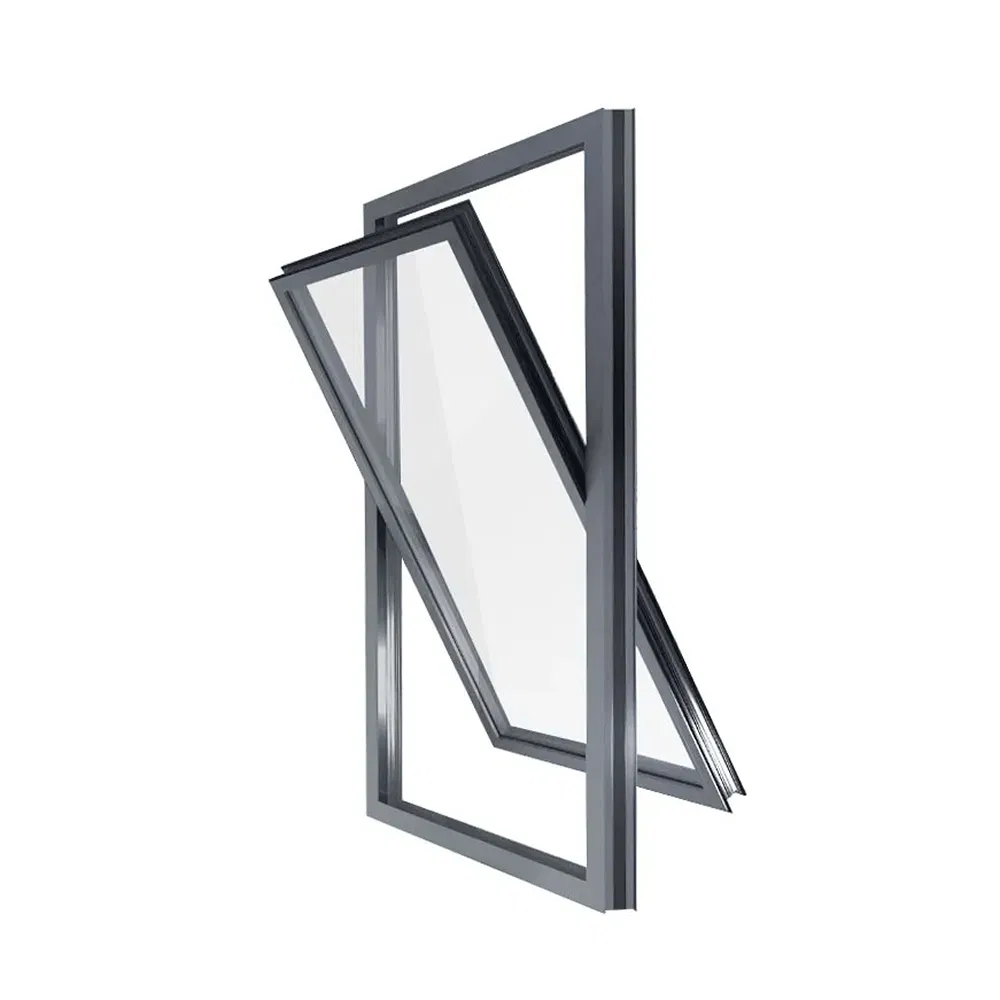

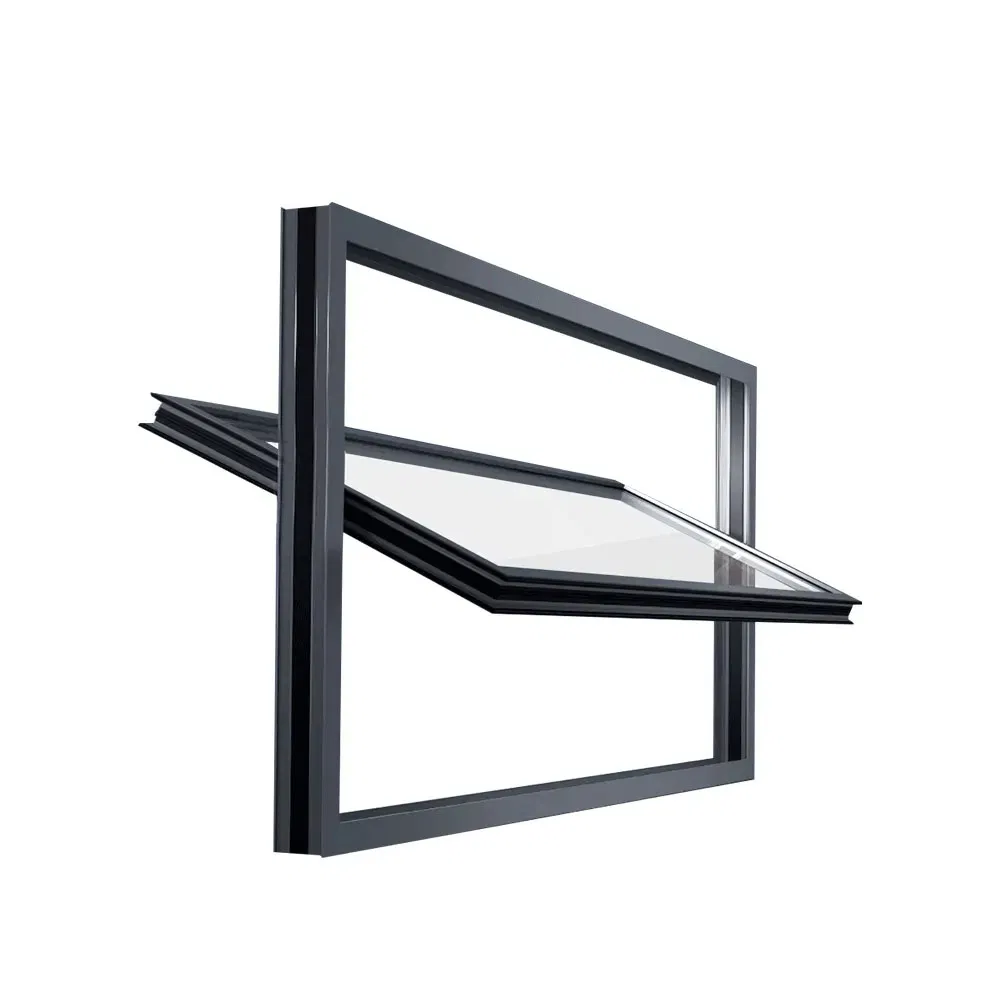

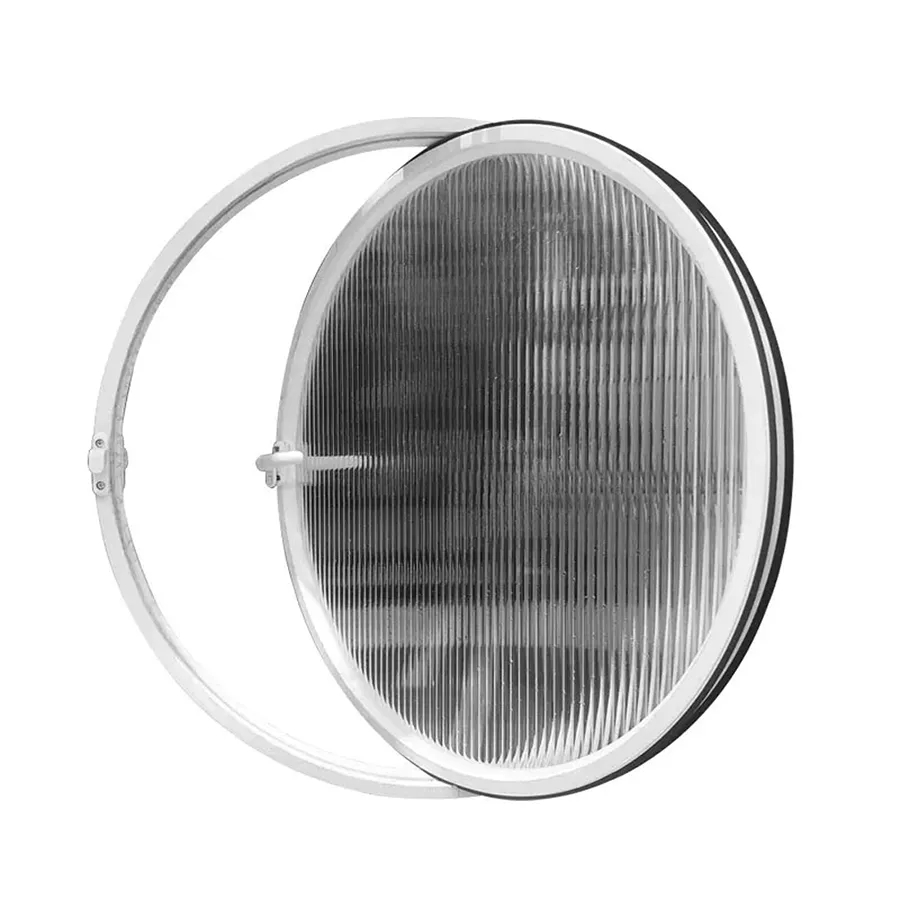

Pivot window features a movable sash connected to the frame by central pivot hinges, allowing it to rotate around a horizontal or vertical axis. This means the sash swings open—halfway or up to 90°—either inward or outward, depending on pivot placement.
They're operated by Precision pivot hinges, often stainless steel, are located at opposing midpoints to balance the sash weight and allow effortless rotation; Friction or braking mechanism to hold the sash in any open position—no slam or wind-blow, just controlled movement.
Supports larger-than-average sashes thanks to central hinge weight-bearing. Modern pivot systems support up to 150 kg per sash and sizes beyond 1900mm.
Unlike outward-opening windows, pivoting sashes rotate within the frame, taking up minimal space and offering unmatched airflow.
Pivoting allows full access to both sides of the glass from indoors—no ladders needed—while the friction brake holds the sash securely.
| SPECIFICATION DETAILS | |
|---|---|
| Product Name | Aluminum Pivot Window |
| Hardware & Accessories | China Top Brand / International Brand |
| Profile Thickness | 1.4mm / 1.8mm / Customization |
| Glass Type | Single/Double/Triple/Tempered/Laminated/Low-E |
| Glass Thickness | 5mm+12A+5mm / 6mm+12A+6mm |
| Function | Heat Insulation, Soundproof, Anti-Theft, Insect-proof |
| Sealing System | EPDM, Silicone Sealant |
| Surface Treatment | Powder Coating / Painting / Polishing |
Gravity self-balancing technology allows the sash to stay stable at any angle with anti-pinch design.
180-degree rotation enables easy cleaning of both sides from the interior.
Minimalist industrial design matched with flexible opening methods for artistic building facades.
